Product Description
Authorized SkyRC Dealer in USA

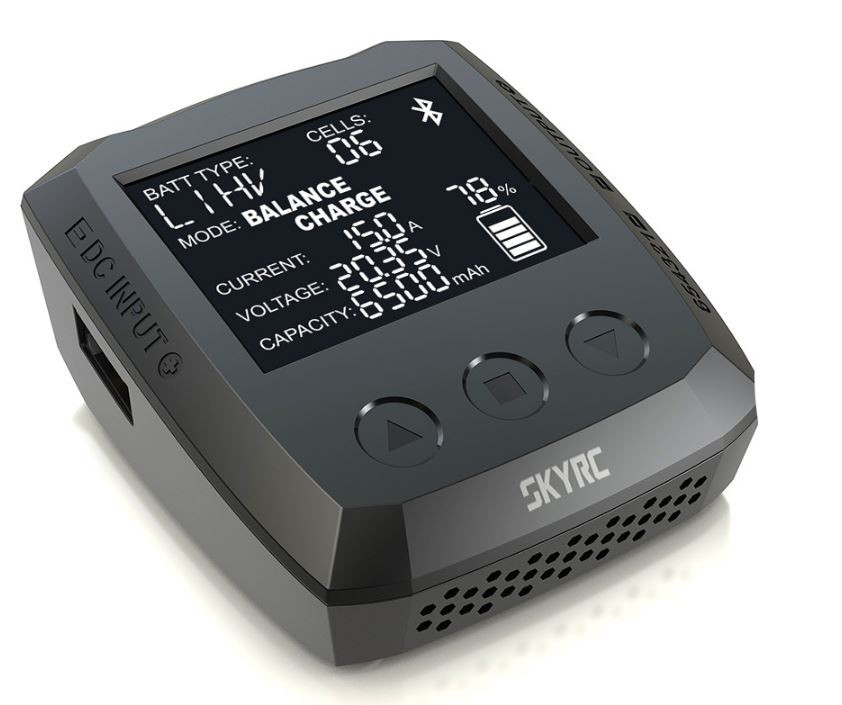

B6 nano
The stronger aspiration to develop a better charger for hobbyists is the creation source of B6 nano. In the premise of artistic product design, internal Bluetooth module confers B6 nano on its ability to be controlled by APP.
With B6 nano, charging becomes faster and more pleasant.
Capacitive Touch Button: B6 nano adpots touch button, advantages of which are sturdy and durable, quick-responsive and easy operative.Charging is no more rigid.
Powerful, Tiny, Smart, that is it!: B6 nano is highly optimized in firmware and structure, while monster power is delivered from such a tiny body. Black screen and touch button contribute to better overall experience on visualization and portability.
Powerful and High SpeedMicro Controller: ARM® Cortex®-M4F 32 bits high speed processor, data process capability improves 20 times. Using industry leading 2.5V-5.5V wide range input voltage, has strong anti-interference ability.
Smart & Efficient Cooling System: Temperature controlled 16000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.
No more scrolling through complex menu, what you see is what you need: Large black screen, active visual size is 50*37.5mm, all information at a glance.
**To take advantage of B6 nano’s full power capability, the power source should be 9-32V DC, and output power should be capable of 380W or higher. Low quality DC power source may damage your B6 nano charger. We recommend you to choose SKYRC 380W Power Supply.
Specifications
**This product is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. It has protection functions such as input high and low voltage protection and reverse input and output reverse polarity protection.
Size and Weight:
Case Material: Plastic
Case Size: 76x85x37mm
Weight: 130g
Case Size: 76x85x37mm
Weight: 130g
Display
Display Type: LCD
Reading Voltage Range: 0.1-26.1V/cell
Buttons And Port
External Port: 2-6S Balance Socket-XH,Battery Socket, DC Input
Controls:Three buttons
Controls:Three buttons
Power
DC Input Voltage : 9-32V
Charge Wattage: 320W
Discharge Wattage: 5W
Charge Wattage: 320W
Discharge Wattage: 5W
Battery
Battery Types/Cells:
LiPo/LiIon/LiFe/LiHV:1-6cells
NiMH/NiCd: 1-15cells
Battery Capacity Range:
NiMH/NiCd:100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh
LiPo/LiIon/LiFe/LiHV:1-6cells
NiMH/NiCd: 1-15cells
Battery Capacity Range:
NiMH/NiCd:100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh
Charge and Discharge
Charge Voltage
NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
LiFe: 3.58-3.7V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell
LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage
NiMH/NiCd:0.1-1.1V/cell
LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cell
LiFe:2.6-2.9V/cell
LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell
LiHV: 3.1-3.4V/cell
Charge Current: 0.1A-15.0A
Discharge Current: 0.1A-3.0ABalance Cells: 2-6 cells
Balance Current: 1000mA/cell Max
Safety Timer: 1-720minutes off
Charge Method:
CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
