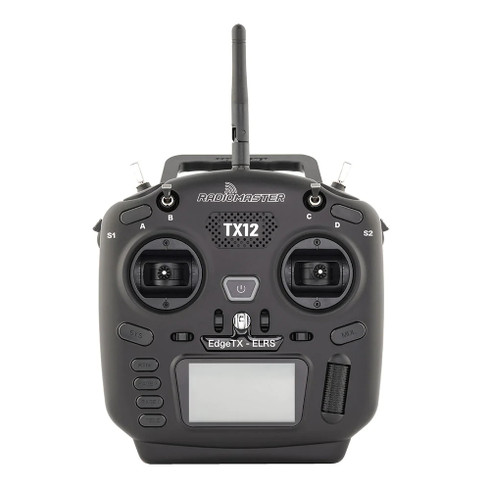

RadioMaster TX12 MKII Radio Controller (ELRS)

$99.99

Product Description

The Mighty, Mini TX12MKII radio has arrived!

Features

  • Added internal ExpressLRS module support
  • Updated main board design from STM32F207 to STM32F407
  • Improved USB-C QC 3.0 Charging
  • Precision hall-effect gimbals as standard
  • EdgeTX operating system installed from the factory
  • Updated rear case with comfortable grips
  • Improved S1 / S2 slider grip
  • SD Card included
  • Provide M1 and M2 modes

Specification

  • Item: TX12 Mark II Radio
  • Size: 170*159*108mm
  • Weight: 363g
  • Frequency: 2.400GHZ-2.480GHZ
  • RF Chip: ExpressLRS (ELRS) / CC2500
  • Working Current: 320mA@8.4V (ELRS) / 180mA@8.4V (CC2500)
  • Voltage Range: 6.6-8.4v DC
  • Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module) / MPM (RF module)
  • Channels: Up to 16 (depending on the receiver)
  • Display: 128*64 Monochrome LCD display
  • Gimbal: High precision hall gimbals
  • External module: JR/FrSKY/Crossfire compatible
  • Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
  • USB Charging: QC3 USB-C
  • SD Card: Included

EdgeTX Operating System

Preinstalled with EdgeTX, the RadioMaster TX12 MKII has cutting-edge software that is constantly evolving and improving. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.

Updated MCU STM32F407

We have upgraded the main processor from STM32F207 to STM32F407.

New Hall Gimbals

With Hall Gimbals, the same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability.

Support USB Simulator

Improved USB-C QC 3.0 Charging

Big Battery Bay

Allows for dual 18650 or dual 21700 Li-ion cells, or 2S Lipo up to 74×60×22mm.

Expresslrs BLE JOYSTICK MODE

Allows for Bluetooth connection to PCs, tablets and phones with BLUETOOTH function to play simulators and games.
* ELRS version only.

Upgraded Design

Includes:

  • 1 * TX12 Mark II Radio Controller
  • 1 * Battery Tray (Battery Cells Sold Separately)
  • 1 * Antenna
  • 1 * USB-C Cable
  • 1 * Quick Start Guide
  • 1 * Sticker

Other Details

Version:
ELRS
Mode:
Mode 2
