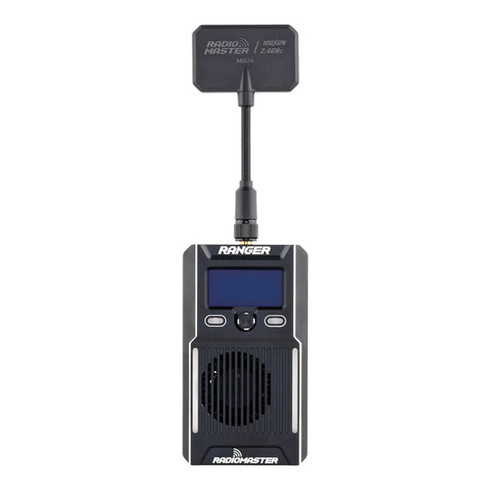

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Features:

• OLED Display
• Rugged CNC Case
• Built-in Accelerometer
• Packet rates up to F-1000Hz
• Up to 1 Watt Power output
• Wifi and Bluetooth support
• High-efficiency cooling system
• 5 Direction Nav key and customizable shortcut buttons
• Micro and Nano adapters included
• Moxon and T-antenna included
• CRSF cable for compatible Futaba radios included

Specifications:

• Item: Ranger 2.4GHz ELRS Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux, as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz - 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
• Futaba CRSF socket cable: Included
• OLED screen:  64x128px
• Wifi Support: Yes
• Bluetooth support: Yes
• 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
• Built-in RGB light strip
• XT30 Power supply voltage: DC 6V - 16.8V
• Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
• Dimension: 95*51*25mm (without antenna)

In the box:

• 1 * RANGER Module
• 1 * Futaba CRSF socket cable
• 1 * JR Adapter
• 1 * Nano Adapter
• 1 * T Antenna
• 1 * Moxon Antenna
• 1 * Hexagon socket screwdriver
• 3 * M2*5 Screws
• 1 * Assembly Manual
