Product Description

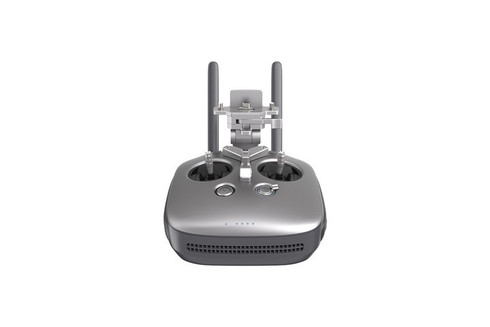

Inspire 2 Remote Controller
Free Shipping
Dual remote control support with HDMI output
- The CystalSky Remote Controller Mounting Bracket is included; a Crystalsky monitor can be directly attached.
- An Inspire 2/Cendence Remote Controller Mobile Device Holder is required when attaching a mobile device.
Overview
Video Transmission System
The latest update to DJI Lightbridge technology has an effective transmission distance of up to 4.6mi (7km)* and is capable of delivering both 1080p/720p video as well as FPV to pilot and camera op. Users can also switch between 2.4GHz and 5.8GHz** control frequencies to cut through noise for greater signal stability.
*Unobstructed, free of interference, FCC compliant.
**5.8GHz transmission is not available in some regions due to local regulations.
Master and Slave Controllers
New wireless HD image transmission technology sends video information from the master controller to the slave controller and the two controllers can be up to 100m apart without loss of image quality.
Broadcast mode
Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50 and 720p60 transmission signal. Aerial live-streaming direct to TV is as simple as connecting the Inspire 2 remote controller to the satellite truck.
The latest update to DJI Lightbridge technology has an effective transmission distance of up to 4.6mi (7km)* and is capable of delivering both 1080p/720p video as well as FPV to pilot and camera op. Users can also switch between 2.4GHz and 5.8GHz** control frequencies to cut through noise for greater signal stability.
*Unobstructed, free of interference, FCC compliant.
**5.8GHz transmission is not available in some regions due to local regulations.
Master and Slave Controllers
New wireless HD image transmission technology sends video information from the master controller to the slave controller and the two controllers can be up to 100m apart without loss of image quality.
Broadcast mode
Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50 and 720p60 transmission signal. Aerial live-streaming direct to TV is as simple as connecting the Inspire 2 remote controller to the satellite truck.
Highlights
Dual remote control support with HDMI output
In the Box
Inspire 2 - Remote Controller ×1
Specifications
Operating Frequency: 2.400-2.483 GHz; 5.725-5.825 GHz
Max Transmitting Distance (unobstructed, free of interference) :
2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC)
5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)
EIRP :
2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC)
5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
Battery: 6000mAh 2S LiPo
Output Power: 9W (Without supplying power to smart device)
USB Supply Power:
iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)
Operating Temperature : -4° to 104° F (-20° to 40° C)
Max Transmitting Distance (unobstructed, free of interference) :
2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC)
5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)
EIRP :
2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC)
5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
Battery: 6000mAh 2S LiPo
Output Power: 9W (Without supplying power to smart device)
USB Supply Power:
iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)
Operating Temperature : -4° to 104° F (-20° to 40° C)
