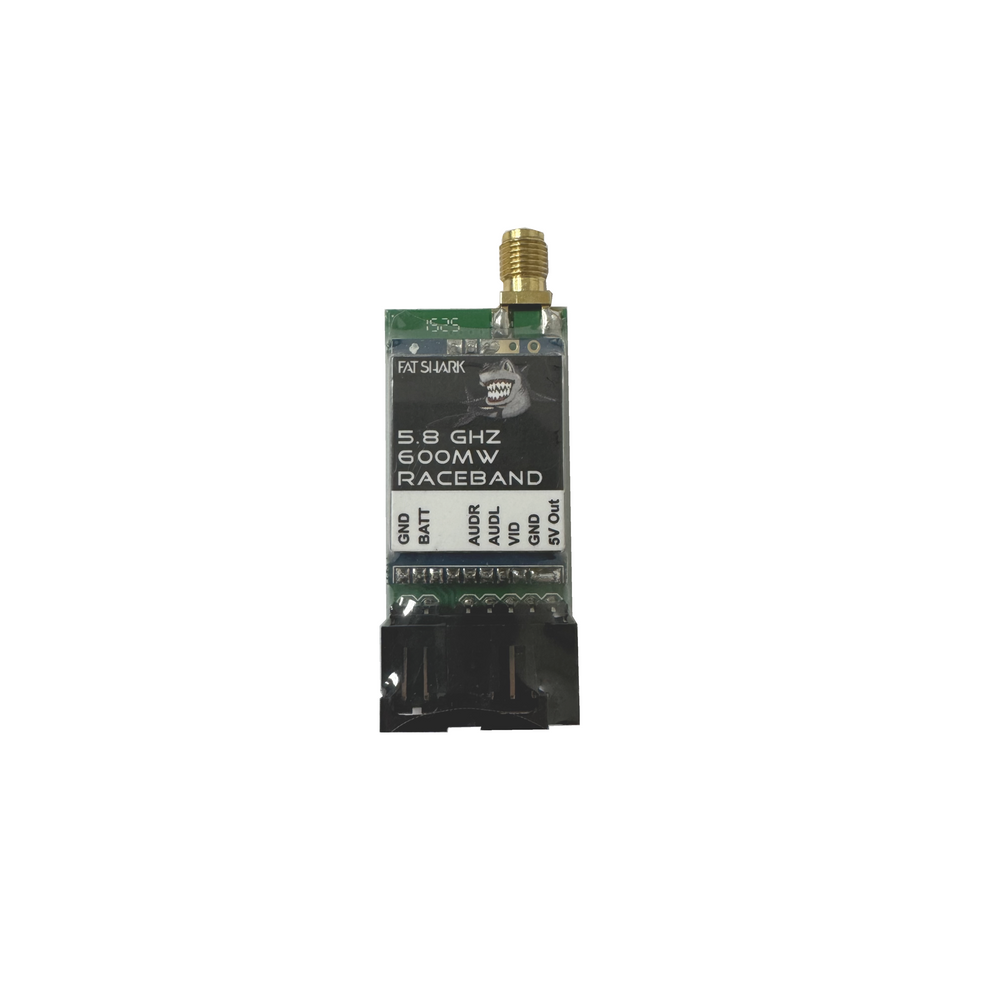

Race Band 15 Channel 600mW Video Transmitter

Supplied with

1 x 2.15dBi 5.8GHz omni-directional antenna (SMA male connector)
1 x Video cable (20cm 5-pin Molex-SL terminated in wire ends)
1 x DC power cable (24cm 2-pin Molex-SL terminated in BEC-style connector)

Specifications:

• Input Voltage Range: 2s-6s LiPo (7-25V)
• 5V Camera Supply: 300mA max.
• RF Output: 50-ohm SMA
• Video Input: 1Vpp, 75 ohms

- 37MHZ frequency seperation allows for flying up to 8 pilots simultaneously.
- SMA female antenna connector
- 600mW (28dBm, +/- 1dB) of clean output power.
- Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860 MHz (ImmersionRC/FatShark)

All standard channels within the US/EU ISM Band

- Frequencies: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917MHz (RaceBand)

All RaceBand channels legal using a Ham license within the USA
RaceBand Channels 1-6 legal using a Ham license within the EU
