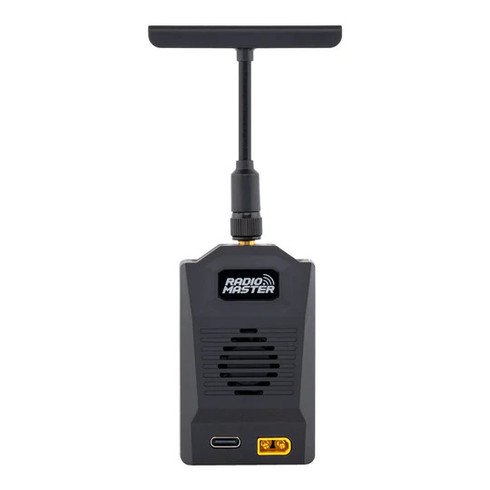

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays

Features:

• High-efficiency cooling system
• Wifi and Bluetooth support
• Packet rates up to F-1000Hz
• Up to 1Watt Power output
• T-antenna included
• With the Nano connector, support Zorro radio

Specifications:

• Item: Ranger Nano Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux,as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz - 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• Wifi Support: Yes
• Bluetooth support: Yes
• XT30 Power supply voltage: DC 6V - 16.8V
• Weight: 48g (with antenna) / 39g (without antenna)
• Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

In the box:

• 1 * Ranger Nano Module
• 1 * T Antenna
•
